Suction Nozzle Cleaning Machine

• Used for cleaning nozzle in industrial and automobile manufacturing
• Metal baking paint, off-white, Model: ZM-XZ600/ outer baking paint inside 304 stainless steel, specifications: L598×W396×H365mm;
• Power (two-phase two-wire) : 220VAC, 50HZ, 20A;
• Air source 0.4-0.6MPa (φ8 trachea)
• Drain pipe size: φ8/ equipment weight: 40KG/ cleaning liquid type: industrial pure water/consumption: about 300CC/H, the use of fluid: air source/compressed air, the use of pressure range 0.5-0.6Mpa (cleaning) injection pressure ≤0.4Mpa/ Air consumption: 280NL/min or less/rated power consumption: maximum 200W, conventional packaging.

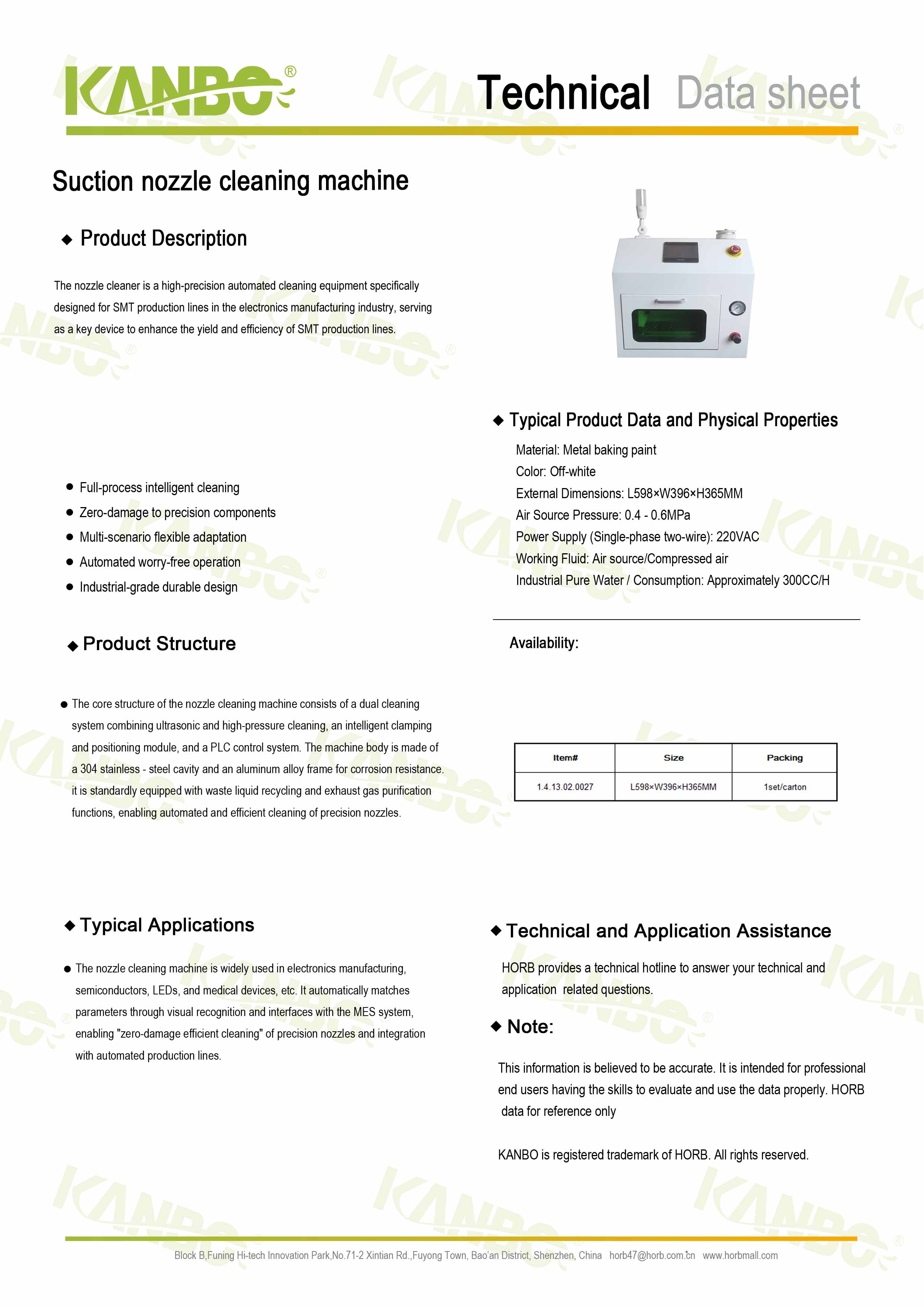

Data Sheet
